Chapter 2. Hardware

This section will explain some specific hardware installation. Please, feel free to send me documentation patches for this section with your own experimentation.

2.1. RME Hammerfall HDSP 9632

A great professionnal soundcard that works just fine with GNU/linux once you have understood its philosophy and avoid traps. We will describe here how to install and configure it.

2.1.1. Firmware

Thanks to Paul Davis and others it exists some kernel stuff for RME HDSP support. However not all firmware versions are supported by old ALSA drivers. ALSA drivers (>= 1.0.14rc1) are ok[1].

Depending on your firmware and ALSA version you will sometime need to downgrade the firmware of your card (but, I repeat, this operation is not needed anymore with ALSA drivers >= 1.0.14rc1). To do this, download a older firmware from the RME website. You will need the 1.51 version. You will find it on the RME archives (under the "HAMMERFALL DSP DRIVERS"). You must download a file named

Once you have downloaded this file, save it on a USB key and reboot on Windows. Then just unzip the file and click on the hdsp_fut.exe file. Do not take in account Windows alerts and click on the update button. Then reboot.

If all was fine, your firmware version should be 1.51 (or 151) on Windows and lspci should output rev97 on GNU/Linux:

$ lspci | grep -i rme
04:01.0 Multimedia audio controller: Xilinx Corporation RME Hammerfall DSP (rev 97)

2.1.2. Linux Kernel

First, take a look at Section 1.3 if you are not confident with kernel compilation.

You will need to compile the snd-hdsp ALSA module.

  Device Drivers  --->
    Sound  --->
      <M> Sound card support
        Advanced Linux Sound Architecture  --->
          <M> Advanced Linux Sound Architecture
          PCI devices  --->
            <M> RME Hammerfall DSP Audio

Then reboot or load the new module as root with modprobe snd-hdsp.

2.1.3. HDSP utilities

Thanks to Thomas Charbonnel and others RME HDSP soundcards have special mixer and configurator GUI. Those tools are in the alsa-tools-gui archive downloadable from the ALSA Web site or packaged for you own GNU/Linux distro. hdspconf

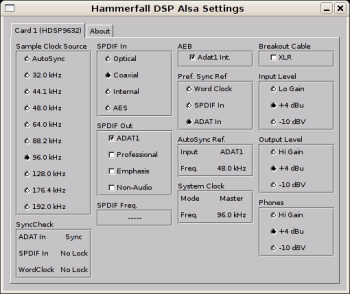

Figure 2-1. hdspconf main window

Use this tool to control the basics of your board. In my case I had to check the Adat1 Int. checkbox and ADAT In radio button in order to have the AEB 4/I expansion fonctionnal. hdspmixer

Figure 2-2. hdspmixer main window

There is no conventional mixer on this card, so alsamixer and other "generic mixer" applications will do nothing. You will have to use hdspmixer every time you will need to capture/produce sound.



Thanks to Andrew Gaydenko for reporting me this great news :-)
